IaaS (Infrastructure as a Service)
: The Ultimate Guide
Share this page
Puneet Dhawan
What is Infrastructure as a Service (IaaS)?
Infrastructure as a Service (IaaS) is a model that defines how vendors deliver cloud-based virtualized resources over the Internet.
IaaS is commonly contrasted with two other cloud computing patterns. The Platform as a Service (PaaS) model adds a layer of managed services to IaaS resources. The Software as a Service (SaaS) model provides fully managed software delivered directly to end users. See the IaaS vs PaaS vs SaaS section below.
Common IaaS use cases include:
- Test and development—teams can rapidly create development and test environments to bring new applications to market faster. IaaS enables teams to create test and development environments automatically, as part of their development pipeline.
- Web apps—IaaS provides all the infrastructure needed to run large scale web applications, including storage, web servers, and networking. Organizations can quickly deploy web applications using IaaS services, and easily scale their infrastructure when application requirements increase or decrease.
- Storage, backup, and recovery—organizations can avoid the high upfront cost of storage and the complexity of storage management. Leveraging cloud storage services eliminates the need for trained personnel to manage data and comply with legal and regulatory requirements, and helps organizations respond to storage requirements on-demand. It also simplifies the planning and management of backup and recovery systems.
- High-performance computing—high-performance computing (HPC) can help solve complex and complex problems with millions of variables and calculations, by running them on supercomputers or large clusters of computers. The major IaaS providers offer services that place HPC within the reach of ordinary businesses, allowing them to use HPC on demand instead of making a huge investment in HPC infrastructure. For example, read our guide to HPC on Azure.
- Big data analytics—big data processing and analysis is critical in today’s economy, and requires complex infrastructure including large-scale storage systems, distributed processing engines, and high-speed databases. IaaS providers provide all this infrastructure as a managed service, and most of them also offer PaaS services that can perform the actual analytics, including machine learning and AI.
IaaS Architecture
In the IaaS model, cloud providers host infrastructure like servers, storage, networking hardware, and hypervisors, meaning organizations do not need to have this requirement in their on-premise data center.
IaaS providers offer a variety of services over this infrastructure. These include:
- Multi tenancy and billing management
- Logging and monitoring
- Security
- Clustering, failover and load balancing
- Backup, replication and recovery
Most IaaS providers offer policy-driven services, allowing users to implement a high level of automation and coordinate critical infrastructure tasks. For example, users can implement policies that automate load balancing to maintain application performance and availability.
IaaS customers can access resources and services over a wide area network (WAN) such as the Internet, and instruct the cloud provider to deploy a complete application stack. For example, a user can connect to the IaaS platform remotely to create virtual machines (VMs). They can install an operating system and an enterprise application on each virtual machine, deploy local disk storage, large-scale object storage, and database systems. The user can then use the provider's services for cost tracking, performance monitoring, network traffic balancing, disaster recovery management, and more.
Most IaaS users consume cloud services via a cloud provider, such as Amazon Web Services or Microsoft Azure (see our list of top cloud providers). This is known as public cloud computing. Organizations can also set up their own IaaS infrastructure, creating what is known as a private cloud, or in combination with public cloud resources, a hybrid cloud.
Learn more in our in-depth guides to:
Multi-Tenant Architecture in the Cloud
Multi-Tenant Architecture in the Cloud Multi-tenancy makes it possible for one software application or infrastructure component to serve multiple customers. Customers are referred to as “tenants”. Each tenant might have the ability to customize the infrastructure or service they receive, but they usually do not have full access to its configuration or source code.
A multi-tenant architecture runs applications or infrastructure in a shared environment. Every tenant is logically separated, while working on resources that are physically integrated with those of other tenants. This means that a multi-tenant component shares one instance of configurations, user management, and data.
Most cloud environments are based on the multi-tenancy model. Both public clouds and private clouds use multi-tenancy, allowing multiple users or groups (whether from different organizations or the same organization) to run workloads separately. For example, in a multi-tenant public cloud environment, multiple organizations or users can run workloads on the same physical server. However, each user only sees their own workloads, a concept known as isolation.
Learn more in our in-depth guide to multi-tenant architecture

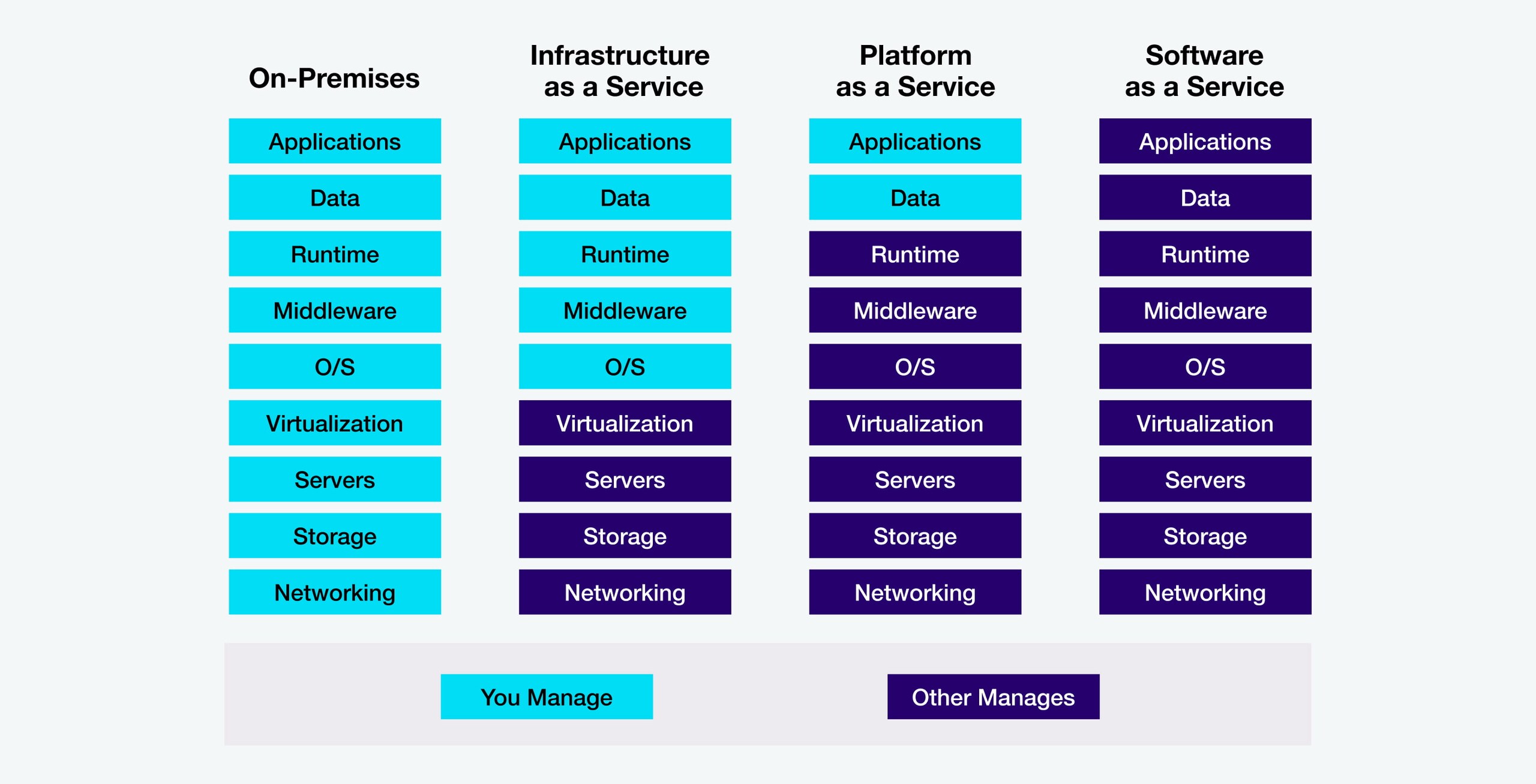

IaaS vs PaaS vs SaaS
What is Platform as a Service (PaaS)?
Platform as a Service (PaaS) provides some infrastructure components, along with additional managed service and software. A PaaS is a framework developers can use to create their own applications, focusing on developing software functionality for their end users. The cloud provider manages complex back-end infrastructure, including computing resources, operating systems, software updates, storage, networking, and integrations.
What is Software as a Service (SaaS)?
Software as a service (SaaS) is a popular choice for cloud users. Because SaaS delivers software to end users over the Internet, most SaaS applications run directly from a web browser and do not need to be downloaded or installed by the customer. PaaS, on the other hand, delivers a software development platform. The majority of cloud consumers do not need PaaS.
This web services model eliminates the need for IT staff to download and install applications on local devices. SaaS enables providers to simplify service and support for their business, while solving potential technical problems such as data and storage management, middleware, servers, and networking.
Key Differences Between IaaS, PaaS and SaaS
- PaaS is based on the IaaS model—this is because, in addition to infrastructure components, the provider manages the operating systems, middleware, and other operating environments for cloud users. PaaS workloads simplify deployment but offer more limited flexibility compared to a pure IaaS model.
- SaaS manages all infrastructure and applications needed for the end user—SaaS users don't need to install or deploy anything. They can typically just login and start using the provider's application, running on the provider's infrastructure. Users can customize the behavior of applications, add their own data, and restrict access. Almost all other aspects are the responsibility of the SaaS provider.
Public Cloud vs. Private Cloud vs. Hybrid Cloud vs. Multi Cloud
There are three primary types of cloud computing environments: public, private, and hybrid clouds:
- Public cloud is the most common form of cloud computing. In this model, service providers offer resources, such as servers and storage, over the Internet. Public cloud services are generally affordable and highly scalable, but they may lack the security and control desired by some businesses.
- Private cloud is a cloud service that is not shared with any other organization. The servers and storage are dedicated to a single business, providing greater control and security. However, private clouds are more expensive and require more management than public clouds.
- Hybrid cloud is a blend of public and private clouds. It allows businesses to keep sensitive information in a private cloud while using the public cloud for non-sensitive data and applications. Hybrid clouds offer the best of both worlds, combining the security of private clouds with the cost-effectiveness and scalability of public clouds.
- Multi cloud refers to the use of multiple cloud services from different providers. This approach allows businesses to avoid vendor lock-in, optimize costs, and leverage the unique strengths of each cloud provider. Multi cloud strategies enable greater flexibility and resilience, as workloads can be distributed across various platforms to meet specific requirements and ensure continuity.
Learn more in our detailed guides to: https://bluexp.netapp.com/blog/cvo-blg-hybrid-cloud-management-relieving-the-operational-burden
What Is CloudOps?
CloudOps is the combination of continuous operations and continuous delivery in the cloud. It is about operating your infrastructure and applications in a way that is optimized, efficient, reliable, secure, and cost-effective.
In the context of IaaS, CloudOps involves managing and maintaining the infrastructure elements provided by the IaaS provider. This could include server instances, storage, and networking components. The goal is to ensure that these resources are optimally configured, secure, and that they are delivering value to the business.
CloudOps also involves monitoring and managing the performance and availability of these resources. This includes setting and managing service levels, as well as identifying and resolving any issues that may arise.
Learn more in our detailed guide to: Cloud Cost Optimization
What Is FinOps?
FinOps, short for Financial Operations, is a discipline that combines financial management, operations, and cloud engineering to optimize cloud spending and maximize business value. It focuses on gaining financial control and accountability over cloud resources, ensuring that cloud investments are made efficiently and aligned with business objectives.
FinOps involves several key practices:
- Visibility: Ensuring that cloud costs are transparent and understandable. This includes detailed cost reporting and usage analytics to track where and how resources are being consumed.
- Optimization: Identifying areas where cloud spending can be reduced without compromising performance or reliability. This includes rightsizing instances, leveraging reserved instances, and eliminating unused resources.
- Governance: Implementing policies and controls to manage cloud spending. This involves setting budgets, defining cost allocation rules, and establishing spending limits to prevent cost overruns.
- Collaboration: Facilitating communication and cooperation between finance, operations, and engineering teams. This ensures that financial considerations are integrated into the cloud management process and that all stakeholders are aligned on cost management goals.
By integrating FinOps into cloud operations, organizations can better manage their cloud costs, enhance financial predictability, and ensure that their cloud investments support overall business strategy.
Learn more in the detailed guide to FinOps
FinOps on AWS
FinOps on AWS involves leveraging various tools and practices provided by Amazon Web Services to manage and optimize cloud costs effectively. Key components include:
- AWS Cost Explorer: This tool provides detailed insights into your AWS spending and usage. It helps in analyzing cost trends, identifying cost drivers, and exploring saving opportunities. With Cost Explorer, you can create custom reports and visualize data to understand spending patterns better.
- AWS Budgets: AWS Budgets allows you to set custom cost and usage budgets. You can receive alerts when usage or costs exceed the predefined thresholds, enabling proactive management of cloud expenses. This tool also integrates with AWS Cost Explorer for detailed budget analysis.
- AWS Trusted Advisor: Trusted Advisor offers real-time recommendations to optimize your AWS environment. It provides insights on cost optimization, security, fault tolerance, and performance improvements. The cost optimization checks include recommendations for unused or idle resources, reserved instance usage, and opportunities for savings plans.
- AWS Savings Plans and Reserved Instances: These purchasing options allow you to commit to using a specific amount of compute power or instances over a one- or three-year period, in exchange for significant discounts compared to on-demand pricing. Utilizing these plans effectively can lead to substantial cost savings.
- Cost Allocation Tags: Implementing cost allocation tags helps in categorizing and tracking AWS resources. By tagging resources with meaningful labels, organizations can allocate costs to specific projects, departments, or teams, enabling more granular cost management and accountability.
Learn more in the detailed guide to AWS cost optimization
FinOps on Azure
FinOps on Azure focuses on using Microsoft's suite of tools and services to optimize cloud spending and improve financial management. Key practices include:
- Azure Cost Management and Billing: This service provides comprehensive insights into your Azure spending. It includes cost analysis, budgeting, and forecasting tools that help in tracking and managing cloud expenses. You can set budgets and alerts to monitor spending and ensure it stays within the allocated limits.
- Azure Advisor: Azure Advisor provides personalized recommendations to optimize your Azure resources for cost, security, performance, and availability. The cost recommendations include advice on rightsizing or shutting down underutilized resources and taking advantage of reserved instances or savings plans.
- Azure Reservations and Spot VMs: Azure Reservations allow you to commit to one- or three-year plans for significant cost savings on compute resources. Spot VMs offer unused Azure capacity at discounted rates, ideal for non-critical or flexible workloads.
- Azure Cost Allocation and Tagging: By implementing a robust tagging strategy, organizations can allocate costs accurately to different projects, departments, or business units. Tags facilitate detailed cost reporting and accountability, making it easier to track and manage expenses.
- Azure Hybrid Benefit: This feature allows you to use your existing on-premises Windows Server and SQL Server licenses with Software Assurance to save on Azure costs. It provides substantial savings for workloads that can leverage this benefit.
FinOps on Google Cloud
FinOps on Google Cloud involves utilizing Google's tools and practices to manage cloud costs effectively. Key components include:
Google Cloud Cost Management: This suite of tools includes detailed cost reporting, budget tracking, and cost forecasting. It allows you to monitor spending, analyze cost trends, and set budget alerts to prevent unexpected expenses.
Google Cloud Pricing Calculator: This tool helps in estimating the cost of Google Cloud services based on your specific usage patterns. It provides a detailed breakdown of costs, enabling you to plan and optimize your cloud spending.
Committed Use Contracts and Sustained Use Discounts: Google Cloud offers discounts for committing to use specific resources over a period (one or three years) and automatic sustained use discounts for consistent usage of certain resources. These options help in reducing overall cloud costs significantly.
Resource Management and Tagging: Implementing a robust tagging strategy in Google Cloud allows for detailed cost tracking and allocation. Tags can be used to categorize resources by project, team, or department, facilitating more accurate financial reporting and accountability.
Google Cloud Recommender: This tool provides actionable recommendations to optimize your Google Cloud environment. It includes suggestions for rightsizing VMs, removing unused resources, and optimizing storage, helping to reduce costs without impacting performance.
Learn more in the in-depth guide to 'cloud cost management'.
Top 9 Cloud Computing Providers
Amazon Web Services—AWS was the first major IaaS provider in 2008, and is today the leading provider of public cloud computing. It provides a complete computing stack that enables organizations to deploy almost any combination or software and hardware infrastructure.
Microsoft Azure—Microsoft Azure is the world’s second largest cloud provider. It is the obvious choice for hosting Microsoft-based systems on the cloud, and is a common choice for government agencies. It also runs an increasing number of non-Microsoft workloads, including Linux, HPC, and SAP systems.
Google Cloud Platform—offers a more limited set of services compared to AWS and Azure, but competes on price and provides the Anthos Platform, which makes it easier to create multi cloud solutions and avoid vendor lock in.
IBM Cloud—a group of enterprise cloud computing services developed by IBM. Includes IaaS, SaaS, and PaaS solutions supporting public, private, and hybrid cloud models.
Alibaba Cloud—the leading cloud provider in China, which is forging alliances to become a key player across Asia.
Dell Technologies/VMware—Dell acquired VMware and is using it to provide a true multi cloud offering. VMware is today fully container based, and enables companies to run the same workloads on leading public clouds like Amazon, Azure and Google Cloud, as well as on premises. The VMware Cloud solution allows users to run VMware workloads on all major public clouds.
Hewlett Packard Enterprise—Hewlett Packard Enterprise's hybrid cloud strategy focuses on its hardware stack, including Aruba wireless networking and edge computing solutions, and software platforms like Greenlake, SimPVT, and Synergy. HPE has partnerships with Red Hat, VMware, and the major cloud providers.
Oracle Cloud—Oracle’s public cloud has a competitive advantage in IoT, OLTP, microservices, artificial intelligence and machine learning. It provides its popular database software as IaaS and PaaS offerings, and also provides the Oracle Data Cloud, which enables big data analytics for business data.
AT&T Business—offers business solutions on the cloud, including content management, content delivery and data recovery. AT&T also offers consulting and professional services to help customers migrate to the cloud.
Learn more in our guides comparing popular cloud services:
IaaS Pricing: AWS vs Azure vs Google Cloud
The following table will help you understand the basic pricing model offered by the big three cloud providers.
|
Price Parameter |
AWS |
Azure |
Google Cloud |
|
Compute Instances |
|
||
|
Reserved Instances |
Commit to 1-3 years with three payment options: upfront, partial payment and the balance monthly, or monthly payment |
Commit to 1-3 years and pay balance upfront |
Offers a discount for commitment to 1 or 3 years, with monthly payments |
|
Spot Instances |
Bid for unused EC2 capacity at a potentially lower price. Prices fluctuate based on supply and demand.
|
Bid for unused Azure compute capacity at reduced prices. Prices can change based on availability and demand.
|
Offered at a lower fixed price than standard VMs. Can be terminated by Google Cloud if resources are needed elsewhere.
|
|
Object Storage—Frequent Access |
Basic rate for first 50 TB, discounts for 51-500 TB and over 500 TB |
Basic rate for first 50 TB, discounts for 51-500 TB and over 500 TB |
Flat rate per GB per month |
|
Object Storage—Infrequent Access |
Three tiers: Infrequent access, One Zone Infrequent Access, Archive Storage |
Two tiers: Infrequent access, Archive storage |
Two tiers: Nearline storage, Coldline storage |
|
Block Storage |
Two tiers: HDD, SSD, and free tier up to 30GB |
Two tiers: HDD, SSD |
Offers standard local/regional volumes, SSD local/regional volumes, multi-regional snapshot storage |
|
Rating Frequency |
Per-Hour for most services, Per-Second for EC2 and Reserved instances |
Per-Hour for most services, Per-Second offered for Windows VMs and Container instances |
Per-Second pricing for all services |
|
Official Pricing Information |
Official pricing
|
||
Learn more in our guides comparing cloud services pricing:
What Is Cloud Hosting?
Cloud hosting is a paradigm that allows organizations to leverage cloud computing without the full complexity of public cloud or private cloud deployments.
Cloud hosting is a more flexible, scalable, and reliable alternative to traditional hosting methods like shared hosting and dedicated hosting. Unlike these traditional methods, where an organization’s resources run on a single server in a provider’s data center, cloud hosting leverages large-scale cloud computing environments, enabling easier scalability and redundancy.
Here are the primary types of cloud hosting:
- Managed Cloud: In managed cloud hosting, the service provider takes care of the setup, administration, management, and support of the cloud servers, freeing up the business to focus on its core competencies.
- Cloud VPS (Virtual Private Server): This is a type of cloud hosting where the user has an allocated amount of server resources. Unlike shared hosting, resources aren't shared with other users. This type of hosting is scalable and can be adjusted as needed.
- Bare-metal cloud: This type of service allows organizations to use a dedicated server hosted within a cloud platform (learn more below).
Related product offering: VPS hosting by Atlantic.net
What Is a Bare-Metal Cloud?
A bare-metal cloud is a type of cloud service where the client leases physical servers from a cloud service provider. Unlike traditional cloud models where multiple users share resources of the same physical server, the bare-metal cloud provides dedicated servers to a single client. This eliminates the "noisy neighbor" problem often encountered in shared hosting environments.
The term "bare-metal" refers to the direct access granted to the underlying physical servers. This means that users are not limited to the resources provided by the hypervisor or virtualization software, but they can access the full capacity of the physical servers. This includes the server's processor power, memory, storage, and networking resources.
Bare-metal cloud combines the best features of traditional dedicated server hosting with the flexibility and scalability of cloud hosting. You get the raw performance of physical servers and the ability to scale up or down as your needs change. And unlike traditional dedicated servers, you can provision and deprovision servers in a matter of minutes, not days or weeks.
Related product offering: bare metal servers by Atlantic.net
What Is Desktop as a Service (DaaS)?
Desktop as a Service, or DaaS, is a form of virtual desktop infrastructure (VDI) hosted by a third party. DaaS is delivered as a cloud service along with the apps needed for your business. This means desktop environments are hosted on the cloud and can be accessed from anywhere, at any time, and on any device.
DaaS offers several advantages over traditional desktop setups. Perhaps the most significant is the ability to access the desktop and applications from anywhere. This mobility is especially beneficial for businesses with remote employees or those who travel frequently.
Another advantage is cost. With DaaS, you pay for what you use. This means that instead of investing in expensive hardware and software, you can scale your costs based on your needs. Additionally, since the service provider takes care of all maintenance and updates, DaaS can significantly reduce your IT workload.
What Is IoT in the Cloud?
The Internet of Things, or IoT, refers to the network of physical devices connected to the internet, all collecting and sharing data. When we talk about IoT in the cloud, we're referring to using cloud computing to process and store the data collected by these devices.
IoT in the cloud allows businesses to improve efficiency and make more informed decisions. By using cloud-based analytics, companies can extract valuable insights from vast amounts of data generated by IoT devices. These insights can then be used to drive business growth and innovation.
Moreover, cloud-based IoT platforms can handle the massive influx of data from various devices and sensors in real-time. They provide the necessary scalability and storage capacity to manage this data effectively. Also, cloud-based IoT solutions offer advanced security features to ensure that the data remains protected from potential threats.
IaaS High Availability
High availability is an important principle of cloud computing. This is especially important for mission critical systems where downtime due to business interruptions is unacceptable. Downtime can hurt productivity and lead to financial losses.
IaaS services are known for their ability to provide a high level of redundancy, spreading applications across multiple physical machines in different locations. They can also provide auto scaling, a mechanism that allows systems to automatically scale up to additional machines on the cloud when loads increase.
AWS High Availability Architecture
Amazon Web Services has built a massive global infrastructure to provide high availability and flexibility for customer workloads.
Amazon offers cloud services in 24 regions (see the map of the Amazon regions). Amazon defines a region as a geographic area with at least three different data centers known as availability zones (AZs).
Each AWS availability zone is a fully localized infrastructure with redundant power supplies, networks, and Internet connectivity. Currently, Amazon supports 77 Availability Zones worldwide. Each AZ typically has three or more data centers in one location, separated by a “meaningful distance” of up to 100 km. This ensures a physical disaster is unlikely to take down all data centers in the AZ, and yet enables high-speed connections between the data centers.
Azure High Availability Architecture
Like AWS, Azure also bases its high availability architecture on regions and availability zones. Azure always stores three copies of user data across three availability zones. This is called redundant local storage. Customers can opt for global redundant storage, to create up to three additional copies of their data in a “paired region”, a nearby region that has fast connectivity with the first region, for added flexibility.
Azure availability zones achieve high availability by distributing resources across multiple data centers in a customer’s region. Azure provides additional services like Azure Site Recovery and Azure Backup to achieve the required recovery point objective (RPO) and recovery time objective (RTO) for their applications.
Google Cloud SQL High Availability Architecture
In Google Cloud, resources that operate in one zone are called “zonal resources”. Other resources operate across an entire region and are called “regional resources”. For example, a Google Cloud virtual machine instance or persistent disk is a zonal resource, while a static IP address is a regional resource.
Google adds the concept of clusters—clusters are groups of physical computers inside a physical data center, with independent power, cooling, networking, and security infrastructure. This allows Google Compute Engine to balance customer resources across clusters in the same zone, while retaining high connectivity between the physical machines in each cluster.
Learn more in our in-depth guide to Google Cloud high availability.
AWS CloudFormation
Amazon Web Services (AWS) CloudFormation is a service that helps you automate the process of creating and managing infrastructure resources in the AWS Cloud. It allows you to use a template to create and provision resources in your AWS account. This template is written in JSON or YAML, and it specifies the resources and their properties that you want to create.
CloudFormation allows you to create, update, and delete resources in a predictable and automated way. It helps you standardize and automate the way you create and manage resources, making it easier to manage and maintain your infrastructure. CloudFormation also provides versioning for your templates, so you can track changes to your infrastructure over time.
You can use CloudFormation to create and manage resources such as Amazon EC2 instances, Amazon S3 buckets, and Amazon Virtual Private Clouds (VPCs). You can also use CloudFormation to create custom resources, using AWS Lambda functions or other AWS services.
Learn more in the in-depth guide to: AWS CloudFormation.
AWS IaaS Services
Amazon S3
Amazon Simple Storage Service (S3) is the first and most popular Amazon service, which provides object storage at unlimited scale. S3 is easy to access via the Internet and programmatically via API, and is integrated into a wide range of applications. It provides 11 9’s of durability (99.999999999%), and offers several storage tiers, allowing users to move data that is used less frequently into a low-cost archive tier within S3.
Related content: read our guide to mounting S3 as a file system.
AWS EC2
Amazon Elastic Compute Cloud (Amazon EC2) offers scalable computing resources. It lets you run as many virtual servers as you want, configure your network and security, and manage storage. You can increase or decrease resources on-demand according to changing business requirements, and set up auto scaling to scale resources up and down according to actual workloads.
AWS EBS
Amazon Elastic Block Store (Amazon EBS) is a block-level storage service for use with Amazon EC2 instances. When mounted on an Amazon EC2 instance, you can use Amazon EBS volumes like any other raw block storage device. It can be formatted and mirrored for specific file systems, host operating systems, and applications.
Learn more in our in-depth guide to AWS EBS.
AWS EFS
Amazon Elastic File System (Amazon EFS) provides a simple, scalable, and fully managed elastic NFS file system for use with AWS cloud services and on-premises resources. It can support up to petabytes of data, automatically scaling as files are added and removed, eliminating the need to configure and manage storage capacity.
Learn more in our in-depth guide to AWS EFS.
AWS EMR
Amazon Elastic MapReduce (EMR) is a cloud-based big data platform for processing vast amounts of data using common open-source tools such as Apache Spark, HBase, Presto, and Flink. EMR is used for data analysis, machine learning, financial analysis, scientific simulation, and bioinformatics.
Customers can create EMR clusters using large or small instances depending on their compute and memory requirements. EMR integrates with AWS data stores such as Amazon S3 and DynamoDB, allowing you to analyze and visualize your data with business intelligence tools.
Learn more in our in-depth guide to AWS EMR
AWS Lambda
AWS Lambda is a serverless, on-demand IT service that provides developers with a fully managed, event-driven cloud system that executes code. AWS Lambda uses Lambda functions—anonymous functions that are not associated with identifiers—enabling users to package any code into a function and run it, independently of other infrastructure.
Learn more in our in-depth guides to:
AWS FSx
Amazon FSx is a fully-managed service that lets you launch, run, and scale high-performance file systems in the AWS cloud. AWS handles management tasks such as hardware provisioning, backups, and patching. The underlying infrastructure powering this service consists of the latest AWS networking, compute, and disk technologies.
AWS FSx offers various capabilities delivered as a reliable, secure, and scalable cloud service that achieves high performance and lower TCO. The service lets you choose a file system to support your storage, including NetApp ONTAP, Lustre, and Windows File Server. FSx provides full access to all feature sets, data management capabilities, and performance profiles.
Learn more in our in-depth guides to:
AWS ECS
AWS Elastic Container Service (ECS) is a highly scalable, high-performance container orchestration service that supports Docker containers and allows you to easily run and scale containerized applications on AWS. ECS eliminates the need for you to install, operate, and scale your own cluster management infrastructure. With simple API calls, you can launch and stop Docker-enabled applications, query the complete state of your application, and access many familiar features like security groups, Elastic Load Balancing, EBS volumes, and IAM roles.
ECS can be used in conjunction with AWS Fargate, a compute engine for Amazon ECS that allows you to run containers without having to manage servers or clusters. With AWS Fargate, you no longer have to provision, configure, and scale clusters of virtual machines to run containers. This removes the need to choose server types, decide when to scale your clusters, or optimize cluster packing
Learn more in our in-depth guide to AWS ECS
AWS Fargate
AWS Fargate is a serverless compute engine for containers that works with both Amazon Elastic Container Service (ECS) and Amazon Elastic Kubernetes Service (EKS). Fargate enables you to focus on building and deploying applications without the complexity of managing the underlying infrastructure. It allocates the right amount of compute, eliminating the need to choose instances and scale cluster capacity.
Fargate is designed for applications that require a balance of compute, memory, and networking resources and integrates with AWS services to provide a secure and efficient container execution environment. Pricing is based on the actual compute and memory resources used by the containerized application, offering a pay-as-you-go model that can lead to cost savings. However, in general Fargate is more expensive compared to EC2, for the same computing capacity.
Learn more in our in-depth guide to AWS Fargate
AWS EKS
AWS Elastic Kubernetes Service (EKS) is a managed service that makes it easier for users to run Kubernetes on AWS without needing to install, operate, and maintain their Kubernetes control plane or nodes. Kubernetes is an open-source system for automating deployment, scaling, and management of containerized applications.
EKS runs the Kubernetes management infrastructure across multiple AWS availability zones, automatically detecting and replacing unhealthy control plane nodes, and providing on-demand, zero-downtime upgrades and patching.
Learn more in our in-depth guide to AWS EKS
AWS Auto Scaling
AWS Auto Scaling monitors your applications and automatically adjusts capacity to maintain steady, predictable performance at the lowest possible cost. It provides a powerful interface that lets you build scaling plans for resources including Amazon EC2 instances and Spot Fleets, Amazon ECS tasks, Amazon DynamoDB tables and indexes, and Amazon Aurora Replicas.
AWS Auto Scaling lets you optimize costs and improve performance. It makes it possible to set scaling policies and set scaling targets manually, or have these created automatically based on an analysis of application loads.
Azure IaaS Services
Linux Virtual Machines in Azure
Traditionally Azure focused on Windows virtual machines, but now has a robust offering for Linux users as well. Azure virtual machines (VMs) are scalable on-demand compute resources provided by Azure.
Microsoft Azure supports popular Linux distributions deployed and managed by multiple partners. Linux machine images are available in the Azure Marketplace for the following Linux distributions (more distributions are added on an ongoing basis):
- FreeBSD
- Red Hat Enterprise
- CentOS
- SUSE Linux Enterprise
- Debian
- Ubuntu
- CoreOS
- RancherOS
Azure Files
Azure Files is a cloud file storage service that provides access to server message block (SMB) file shares. These shares can be configured as part of an Azure storage account. Azure Files enables cloud-based virtual machines and on-premise applications to share files using standard protocols.
Azure Managed Disk
Azure managed disks are block-level storage volumes managed by Azure and used by Azure virtual machines. A managed disk is similar to a physical disk on a local server, but it is virtualized. For managed disks, you only need to specify the disk size and disk type, and provision—Azure does the rest. The available hard drive types are:
- Standard hard disks (HDD)
- Standard SSD
- Premium SSDs
- F
- Ultra disks—optimized for sub-millisecond latency
Related content: read our guide to Azure Disk pricing.
Azure Blob Storage
Azure Blob Storage is Microsoft's object storage service, similar to Amazon S3. Blob storage is suitable for storing large amounts of unstructured data. Blob storage offers sixteen 9’s of durability, and advanced security features including RBAC, encryption at rest and advanced threat protection. IT also supports lifecycle management and immutable storage (WORM), which can help protect against data loss and threats like Ransomware.
HPC on Azure
Azure provides high performance computing (HPC) resources, which you can deploy purely on the public cloud, or combine with local HPC resources to create a hybrid HPC deployment. Azure provides an HPC head node which is used to schedule jobs and workloads, and a virtual machine scale set, with large numbers of VMs that can be used to run massively parallel workloads. These VMs can include both CPU and GPU hardware, depending on the type of processing required.
SAP on Azure
A large variety of SAP applications can be deployed to Azure, using predefined virtual machines created and certified by SAP.
SAP HANA
You can run the SAP HANA in-memory database on Azure, using M-series VMs that scale up to 4TB memory, certified for use with SAP HANA. Another option is Mv2 VMs, the largest SAP HANA certified VMs in the public cloud, with 6TB of memory. Azure offers a service level agreement (SLA) of 99.99% for instances in high availability pairs, and 99.9% for standalone instances.
SAP S/4HANA
You can deploy SAP S/4HANA on Azure, with remote connection via Azure ExpressRoute for Fiori applications. Azure provides an SLA of 99.99% SLA if you run S/4HANA in two Azure availability zones. It also provides backup and recovery in second, even for databases with multiple TBs of data.
VDI on Azure
Microsoft Virtual Desktop Infrastructure (VDI) offers multi-tenant support for Windows 10 and a Windows Virtual Desktop license. Azure provides the FSLogix configuration file container, which decouples user configuration files from the underlying operating system. Azure recently launched MSIX AppAttach, which allows you to package a Win32 application in an MSIX application container.
Read our in-depth guide to VDI on Azure.
Google Cloud IaaS Services
Google Cloud Storage
Google Cloud Storage is an object storage service by Google Cloud. It provides features like object versioning and extended permissions (per item or bucket). Google Cloud offers two archive storage tiers with lower pricing and fast retrieval times, called Nearline and Coldline.
Learn more about storage options in Google Cloud—lock, network file, and object storage—in our guide to Google Cloud Storage.
Google Cloud Filestore
Google Cloud Filestore uses NFS version 3 and is designed for workloads requiring low latency and minimal performance fluctuations. This service has two levels of performance: standard and premium. The premium tier can support very high performance—700 Mbps for reads, 350 Mbps for writes, and a maximum of IOPS of 30,000.
Google Persistent Disk
In Google Cloud, a Persistent Disk is a storage device that you can access from a virtual machine, like a physical hard drive. The data is spread across multiple physical hard drives in the Google data center. Google Compute Engine manages the distribution of data for optimal redundancy and performance.
Adopting IaaS: Cloud Migration Strategies
Following are the most common approaches to cloud migration, taken from the influential “5 Rs” model proposed by Gartner.
Learn more in our in-depth guide to cloud migration strategy.
Rehosting
Re-hosting (also known as "lift and shift") is the fastest way to move your application to the cloud. This is usually the first approach taken in a cloud migration project because it allows moving the application to the cloud without any changes. Both physical and virtual servers are migrated to infrastructure as a service (IaaS). Lift and shift is commonly used to improve performance and reliability for legacy applications.
Learn more in our in-depth guide to lift and shift.
Replatforming, Refactoring, or Re-architecture
This migration strategy involves detailed planning and a high investment, but it is the only strategy that can help you get the most out of the cloud. Applications that undergo replatforming or re-architecture are completely rebuilt on cloud-native infrastructure. They scale up and down on-demand, are portable between cloud resources and even between different cloud providers.
Repurchasing
In most cases, repurchasing is as easy as moving from an on-premise application to a SaaS platform. Typical examples are switching from internal CRM to Salesforce.com, or switching from internal email server to Google’s G Suite. It is a simple license change, which can reduce labor, maintenance, and storage costs for the organization.
Retire
When planning a move to the cloud, it often turns out that part of the company's IT product portfolio is no longer useful and can be decommissioned. Removing old applications allows you to focus time and budget on high priority applications and improve overall productivity.
Retain
Moving to the cloud doesn't make sense for all applications. You need a strong business model to justify migration costs and downtime. Additionally, some industries require strict compliance with laws that prevent data migration to the cloud. Some on-premises solutions should be kept on-premises, and can be supported in a hybrid cloud migration model.
Now that we’ve covered some of the general strategies for migrating workloads to the cloud, let’s dive deeper into specific best practices for migrating to each of the big three cloud providers: AWS, Azure, and Google Cloud.
AWS Migration Best Practices
Leverage AWS Tools
AWS offers a wide range of tools designed for the migration process, from the initial planning phase to features for post-migration. Here are several useful tools to consider:
- AWS Migration Hub - a dashboard that centralizes data and helps you monitor and track the progress of migration.
- AWS Application Discovery - collects data needed for pre-migration due diligence.
- TSO Logic - offers data-driven recommendations based on predictive analytics. The recommendations are tailored to help during the planning and strategizing phase.
- AWS Server Migration Service - provides automation, scheduling, and tracking capabilities for incremental migrations.
- AWS Database Migration Service - keeps the source data store fully-operational while the migration is in process, to minimize downtime.
Amazon S3 Transfer Acceleration - improves the speed of data transfers made to Amazon S3, to maximize available bandwidth.
Automate Repetitive Tasks
The migration process typically involves many repetitive tasks. You can perform these tasks manually, and you can automate them. The main purpose of automation is to enable you to achieve a higher level of efficiency while reducing costs. In many cases, automation can also help you complete tasks much faster than manually possible.
Outline and Share a Clear Cloud Governance Model
A cloud governance model defines and specifies the practices, roles, responsibilities, tools, and procedures involved in the governance of your cloud environments. Your model needs to be as clear as possible, to ensure all relevant stakeholders understand how cloud resources should be managed and used. Ideally, you should define this information before migrating.
Here are several questions your cloud governance model should answer:
- What controls are set in place to meet security and privacy requirements?
- How many AWS accounts are maintained?
- What privileges are enabled for each role?
There are many more considerations to address in your cloud governance model, depending on your industry and business needs. Be sure to keep your documentation flexible to allow for change and optimization after the migration process is completed and your workloads settle in the new cloud environment.
Learn more in our detailed guide to AWS migration
Azure Migration Best Practices
Azure Migration Tools
Azure offers several migration tools designed to simplify and automate the migration process. Here are three commonly used Azure migration tools:
- Azure Migrate—helps you to assess your local workloads, determine the required size of cloud resources, and estimate cloud costs.
- Microsoft Assessment and Planning—helps you discover your servers and applications and build an inventory. Additionally, this tool can create reports that determine whether Azure can support your workloads.
- Azure Database Migration Service—helps you migrate on-premise SQL Server workloads to Azure.
Cost Management in Azure
Cloud resources are highly accessible and flexible, but costs can quickly skyrocket if you don’t have a cost management strategy in place. Here are several tools and techniques you can use to manage your cloud costs:
- Tag your resources - to manage costs, you need visibility into cloud resource consumption. You can set this up by tagging resources and monitoring them. Be sure to use standard tags and keep this organized.
- Use policies - to automate tagging and monitoring. Cloud resources are highly scalable and this can make manual tagging and monitoring incredibly time consuming. Use policies to standardize the process and automation to enforce these rules.
You can leverage either third-party and first-party tools for tagging. There are also tools dedicated to cost management and optimization and monitoring. In addition, you can set up role-based access control (RBAC) to ensure resources are properly used by authorized users, and set up several resource groups.
Review Every Policy and Procedure
Policies and procedures are a foundational component of the migration process and heavily impact the success of the implementation. To ensure your migration runs smoothly, you should define and review all policies and then apply them in a cohesive and standardized manner.
Properly implementing security can ensure all required security measures are set in place. Policies are not only responsible for enforcing security, but also help you achieve and maintain compliance. Data encryption, for example, is a component you can enforce using a policy.
Once you define your policies and procedures, you should test them before running in production. You can automate this process using several tools. Azure Migrate, for example, can help you automatically identify, assess, and migrate your local VMs to the Azure cloud.
Google Cloud Migration Best Practices
Moving Data
Here are several aspects to consider when migrating to Google Cloud:
- Move your data first - and then move the rest of the application. This is recommended by Google.
- Choose the relevant storage - Google Cloud offers several tiers for hot and warm storage, as well as several archiving options. You can also leverage SSDs and hard discks, or choose a cloud-based database service, such as Bigtable, Datastore, and Google Cloud SQL.
- Plan the data transfer process - determine and define how to physically move your data. You can, for example, send your offline disk to a Google data center or opt to stream to persistent disks.
Moving Applications
There are several ways to migrate applications, depending on the application’s suitability to the cloud. In some cases, you might need to re-architect the entire application before it can be moved to the cloud. In other cases, you might need to do light modification before the migration. Ideally, when possible, your application can be lifted and shifted to the cloud.
A lift and shift migration means you do not need to make any changes to your application. You can lift it and move it directly to the new cloud environment. For example, you can create a local VM within your on-premise center, and then import it as a Google VM. Alternatively, you can backup your application to GCP - this option lets you automatically create a cloud copy.
Optimize
After the migration process is complete and your application is safely hosted in the cloud, you need to set up measures that help you continuously optimize your cloud environment. Here are several tools offered by Google:
- Google Cloud operations suite (Stackdriver) - provides features that enable full observability into your Google cloud environment. The information is centralized in a single database that lets you run queries and leverage root-cause analysis to gain detailed insights.
- Google Cloud Pub/Sub - helps you set up communication between any independent applications. You can use Pub/Sub to rapidly scale, decouple applications, and improve performance.
- Google Cloud Deployment Manager - lets you automate the configuration of your applications. You specify the requirements and Deployment Manager automatically initiates the deployments.
Running Mission Critical Applications in the Cloud
A mission-critical application relies on continuous availability and cannot undergo even a brief downtime. This can lead to financial, reputational, and operational damages to an entire business or a segment.
When provisioning a mission critical application, you need to ensure stability and availability at all times. You can achieve this by creating redundant copies of your application and hot backups. Additionally, you can duplicate your production and staging environments and test them.
Large enterprises typically use the following three types of mission critical applications:
- Backup and disaster recovery - strategies are critical to ensure business continuity. Your recovery strategy should provide a short recovery time objective (RTO) and minimize the recovery point objective (RPO).
- Enterprise Resource Planning (ERP) - systems manage business processes, providing capabilities to manage finances, manufacturing, distribution, the supply chain, human resources, and more. ERPs must remain operational at all times.
- Virtual Desktop Infrastructure (VDI) - solutions help you remotely deliver a desktop image to endpoint devices via an Internet network. VDI technology enables users to access mission critical applications on their smartphones, laptops, and other thin-client devices.
Traditionally, mission-critical applications are hosted on-premises, but today many of these applications are moving to cloud environments. The cloud can provide enterprises with a high level of flexibility and scalability. Ideally, if cloud resources are properly utilized and optimized, enterprises can significantly reduce their costs by moving to the cloud.
There are, however, several challenges enterprises face when migrating their mission-critical applications to the cloud. The migration process is a major challenge for many enterprises. The process itself can take time, for one, and comes with a unique set of risks. For many enterprises, security and compliance are critical and must be maintained at all times.
The cost of migration and unforeseen overhead can also run high. However, it is possible to address these challenges. To successfully migrate mission critical applications, enterprises can leverage techniques and solutions designed for the migration process. Planning the migration is especially helpful to minimize overhead and ensure known challenges are addressed in advance.
Learn more about running mission critical applications on the Microsoft Azure cloud in our detailed guides to:
Deep Learning in the Cloud
Deep learning is at the center of most artificial intelligence (AI) initiatives. It is based on the concept of a deep neural network, which passes inputs through multiple layers of connections. Neural networks can perform many complex cognitive tasks, improving performance dramatically compared to traditional machine learning algorithms. However, they often require huge data volumes to train and can be very computationally intensive.
Deep learning is often a time-consuming and costly endeavor, especially regarding training models. Many factors can impact the process, but processing power is critical to ensure the pipeline works effectively. Graphics processing units (GPUs) provide the processing power needed for computationally intensive operations, but setting this up is not affordable for all organizations.
Cloud computing vendors provide various services to help make deep learning more affordable and accessible. Services may vary between vendors, but most can help you manage large datasets and train algorithms on distributed hardware. Here are notable offerings from the top cloud vendors - Amazon Web Services (AWS), Microsoft Azure, and Google Cloud:
AWS
AWS provides four instance options, available in multiple sizes. These include EC2 P2, P3, G3, and G4 instances. With these instances, you can choose to access NVIDIA Tesla M60, T4 Tensor, K80, or V100 GPUs and can include up to 16 GPUs per instance.
With AWS, you also have the option of using Amazon Elastic Graphics. This service enables you to connect your EC2 instances to various low-cost GPUs. You can attach GPUs to any instance compatible for greater workload flexibility. The Elastic Graphics service also provides up to 8GB of memory and supports OpenGL 4.3.
Azure
Azure provides several choices for GPU-based instances. These instances are designed for high computation tasks, including deep learning, simulations, and visualizations.
In Azure, you can choose from three instance series:
- NC-series—optimized for compute and network-intensive workloads. These instances can support OpenCL and CUDA-based applications and simulations. Available GPUs include NVIDIA Tesla V100, Intel Broadwell, and Intel HaswellGPUs.
- NV-series—optimized for visualizations, encoding, streaming and virtual desktop infrastructures (VDI). These instances support OpenGL and DirectX. Available GPUs include AMD Radeon Instinct MI25 and NVIDIA Tesla M60 GPUs.
- ND-series—optimized for deep learning training scenarios and inference. Available GPUs include NVIDIA Tesla P40, Intel Skylake, and Intel Broadwell GPUs.
Google Cloud
Although Google Cloud doesn’t offer dedicated instances with GPUs, it does enable you to connect GPUs to existing instances. This works with standard instances and Google Kubernetes Engine (GKE) instances. It also enables you to deploy node pools, including GPUs. Support is available for NVIDIA Tesla V100, P4, T4, K80, and P100 GPUs.
Another option in Google Cloud is access to TensorFlow processing units (TPUs). These units are made of multiple GPUs. TPUs are designed to perform matrix multiplication quickly and can provide performance similar to Tensor Core enabled Tesla V100 instances. Currently, PyTorch provides partial support for TPUs.
Learn more in our detailed guide about cloud deep learning
Kubernetes in the Cloud
Kubernetes on AWS
Kubernetes lets you use existing on-premises and cloud-based tools to run containerized applications. It can manage clusters of AWS EC2 instances, deploying, running, maintaining, and scaling containers on EC2 instances.
AWS helps you easily manage Kubernetes infrastructure with Amazon EC2 or employ Amazon EKS for automatic provisioning and management. You can also leverage community-backed integrations to AWS services, such as IAM, VPC, and service discovery.
Kubernetes on Azure
Azure Kubernetes Service (AKS) enables you to deploy a managed Kubernetes cluster in the Azure cloud. AKS is a hosted Kubernetes service that reduces the operational overhead and complexity of managing Kubernetes by managing these responsibilities. Azure handles health monitoring and maintenance and manages Kubernetes masters, so you can focus on managing and maintaining agent nodes.
Learn more in our in-depth guide to Kubernetes on Azure.
Kubernetes on Google Cloud
Google Kubernetes Engine (GKE) is an orchestration system for Docker containers and container clusters running in Google's public cloud. It is based on Kubernetes, which Google originally developed for container management. You can use the gcloud CLI or the Google Cloud Platform Console to interact with this service.
GKE employs a group of instances to run Kubernetes. It allocates a master node to manage a cluster of Docker containers and runs a Kubernetes API server that interacts with the cluster and performs various tasks, including scheduling containers. A cluster may also include one or more additional nodes that run a Docker runtime and kubelet agent to manage containers.
IaaS Storage Optimization with NetApp Cloud Volumes ONTAP
NetApp Cloud Volumes ONTAP, the leading enterprise-grade storage management solution, delivers secure, proven storage management services on AWS, Azure and Google Cloud. Cloud Volumes ONTAP supports up to a capacity of 2 PB, and supports various use cases such as file services, databases, DevOps or any other enterprise workload, with a strong set of features including high availability, data protection, storage efficiencies, Kubernetes integration, and more.
In particular, Cloud Volumes ONTAP provides Cloud Manager, a UI and APIs for management, automation and orchestration, supporting hybrid & multi-cloud architectures.
